Go Beyond the Bay

At twenty-seven feet overall, the SeaVee 270z bay boat is a stable fishing platform designed for large, exposed bays and coastal areas, as well as the occasional offshore excursion. A hull draft of only 15 inches allows the 270z to access skinny water and glide along silently guided by a high thrust trolling motor. A twin stepped hull powered by single or twin outboards provides a grin inducing performance at any speed, in a wide range of conditions. Discover a bay boat with offshore DNA running through its veins.

Individual results will vary with engine package, load and conditions.

Highlights

Fish Boxes

Front and rear fish boxes offer plenty of storage space, and are insulated to keep your catch cold for days.

Rod Storage

The 270Z features two rod lockers, as well as vertical rod storage in the leaning post and on both sides of the console for up to 19 rods.

Power Pole

Install up to two 10’ power poles on either side of the transom for fast, easy and silent anchoring in shallow water.

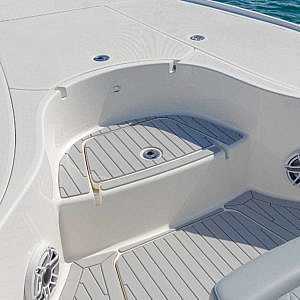

Bait Wells

The 270z features two standard bait wells, one up front and one in the rear. An additional 2 wells can be added by converting the rear fish boxes.

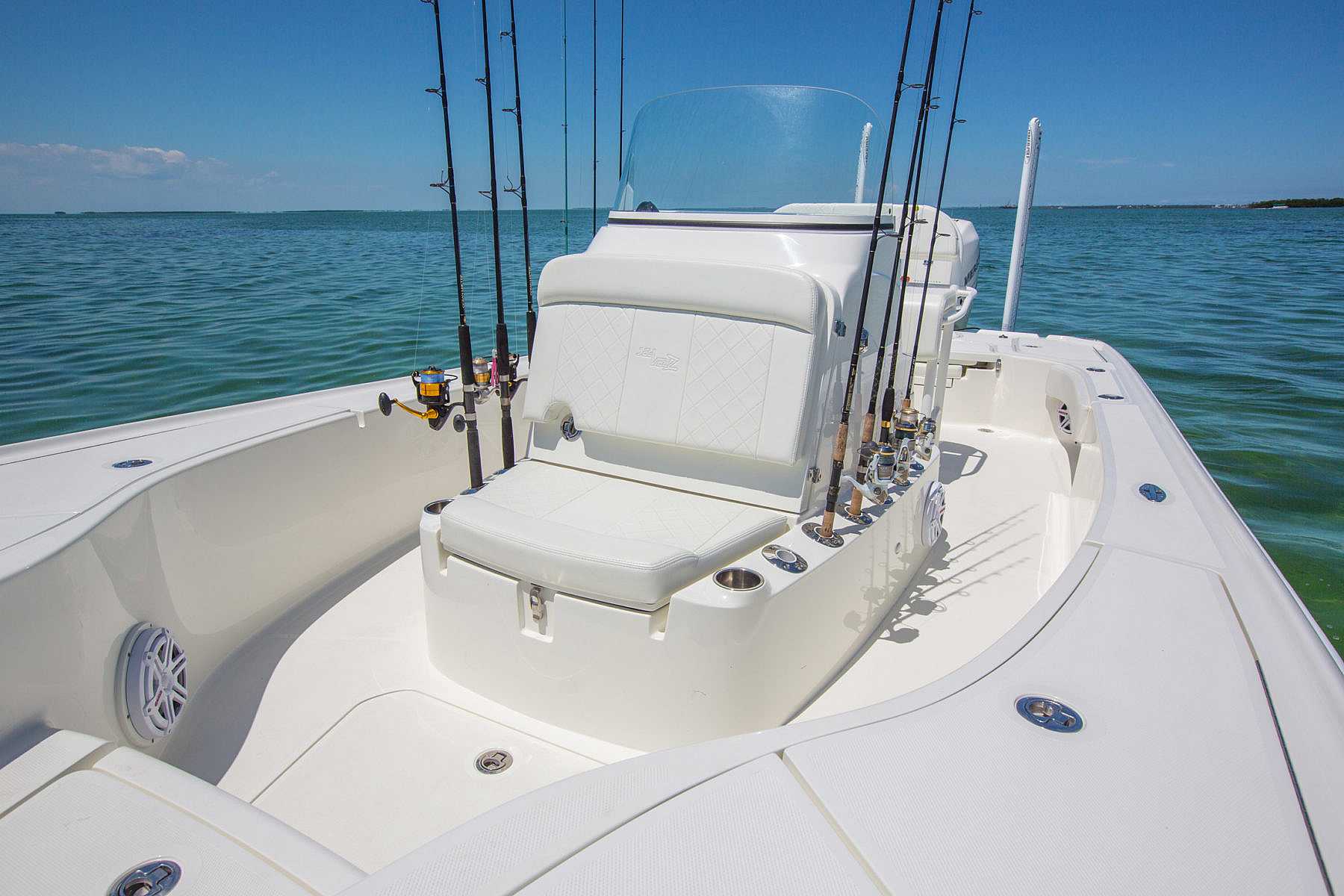

Leaning Post

Featuring abundant storage for rods and gear, the leaning post is available with or without a cooler below.

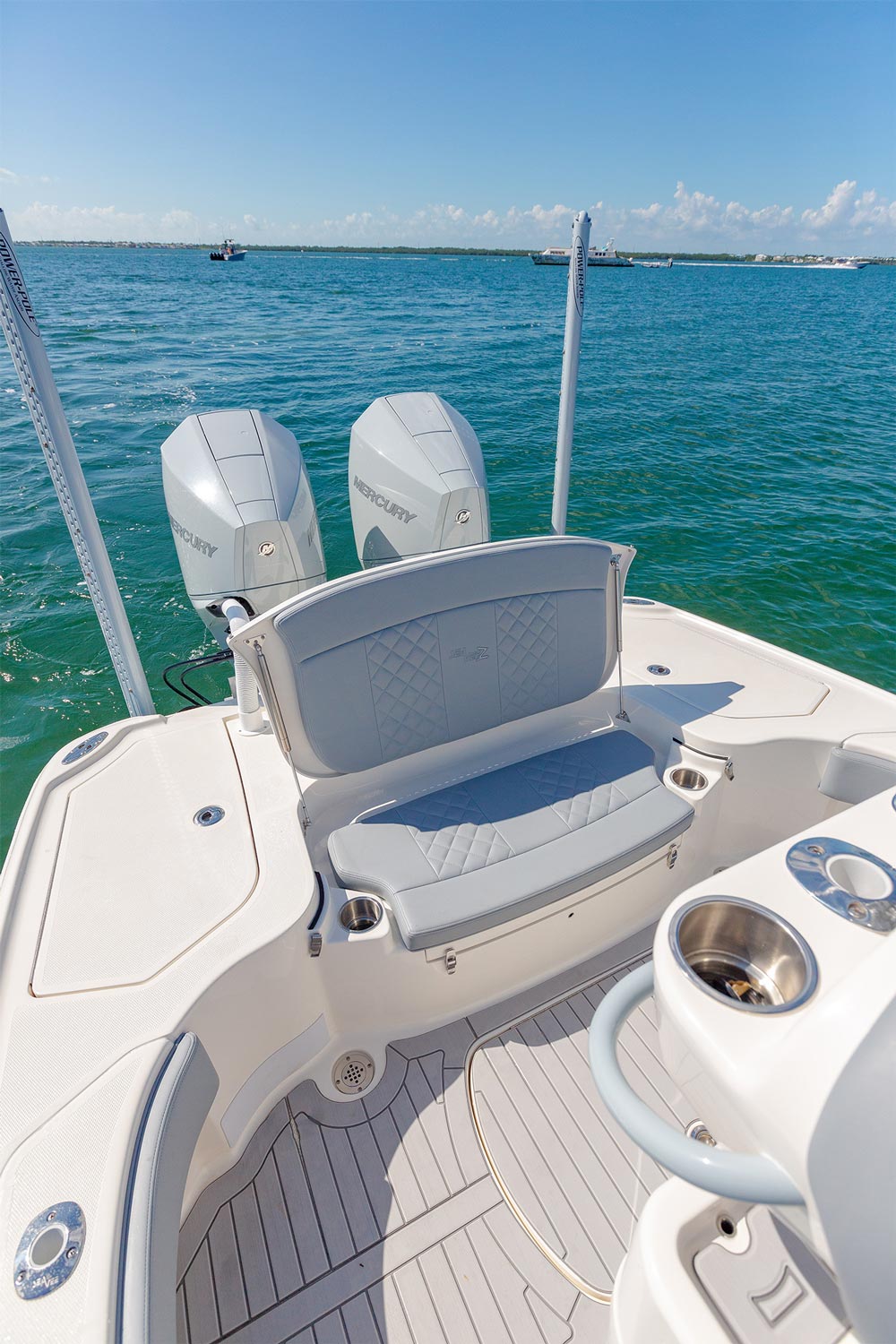

Rear Seating

A large pop-up rear seat makes longer runs comfortable and days at the sandbar more fun.

Fishing First

The most important fishing feature on any bay boat is adequate deck space and the 270z offers plenty of it! Oversize bow and aft casting platforms are connected by wide gunwales that make walking from bow to stern safe and easy. Eliminating the space hogging splash well further enlarges the overall size of the aft platform – making it the largest currently available on any boat in this class.

Storage and live well space are also a key focus. An abundance of storage lockers, live wells and fish boxes make it easy to bring everything you need – every time! Rod lockers are large enough to accommodate fly rods up to 9 feet and the console holds up to 11 rods with a hardtop option and up to 14 without.

The Ride that Glides

Just like her bigger SeaVee Z cousins, the 270z’s cross ventilated, twin stepped, patent pending hull produces better speed, efficiency and handling characteristics than ordinary stepped hulls. Its multiple lifting bodies and unique hull geometry result in a fixed running trim angle, ensuring an optimum angle of attack regardless of speed or sea conditions.

Yet every boater knows it’s about more than just the numbers. Staying dry, a soft ride and predictable handling are just as important. That’s why we invite you to schedule a sea trial today and experience the 270z for yourself.

The Power of Choice

When you’re building a SeaVee, the brand of motors you choose to hang is up to you. Power options for the 270z Bay include single or twin engines, up to 450 hp. Motors are mounted on hydraulically operated jackplates with plenty of room for single or twin powered anchor poles. 350 hp is sufficient to reach speeds around 50mph. Upgrading to 450 hp or twin 225 hp motors elevates performance into the 60 mph range and beyond.

Power Options

  • Single 350 hp – Top Speed 50 mph, Range 320 nm
  • Single 400 hp – Top Speed 54 mph, Range 310 nm
  • Single 450R hp – Top Speed 62 mph, Range 300 nm
  • Twin 225 hp – Top Speed 60 mph, Range 270 nm
  • Top speed and range may vary depending on sea conditions and load

Specifications

  • LOA – 27’
  • Beam – 9’1”
  • Weight w/o Engines – 3,500 lbs.
  • Hull Draft – 15”
  • Hull Deadrise – 17°
  • Fuel Capacity – 116 gal.
  • Fresh Water Capacity – 9 gal.
  • Max Engines – 2
  • Max HP – 450
  • Fwd Storage / Trolling Motor Battery Storage – 107 gal.
  • Fwd Livewell – 24 gal.
  • Fwd Fishboxes – 2x 75 gal.

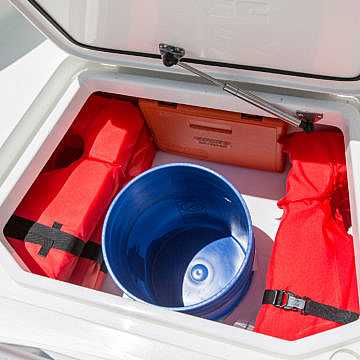

  • In-Deck Safety Gear / Castnet Storage Locker – 53 gal.
  • Transom Livewell – 30 gal.
  • Aft Side Release Wells/Livewell/Fishboxes – 2x 17 gal.
  • Console Cooler – 17 gal.

Standard Features

  • 24 Gallon Fwd. Live Well
  • 30 Gallon Aft Transom Live Well
  • Molded Double Aft Bench Seat
  • Molded Anchor Locker
  • 75 Gallon Fwd. Fish Boxes Port and Starboard
  • Bow Storage Compartment with Separate Battery Area
  • Dual 9’ Rod Lockers with Fold Away Rod Racks Port and Starboard
  • Safety Gear Storage Compartment with Intergraded Bucket Receiver
  • 68 Quart Console Integrated Drink Cooler
  • Dual 17 Gallon Aft Storage / Optional Release or Live Wells. Port and Starboard
  • Engine Jack Plate
  • Trim Tabs
  • Infused Cored Hull Elaborate
  • Under Gunnel Lights
  • Pull Up Cleats (6)
  • Molded Windshield
  • Stainless Steel 30 Degree Rod Holders (4)
  • AGM Group 27 Battery (2) Includes Automatic Charging Relay
  • 12 Volt DC Circuit Breaker Panel
  • 1/4” Epoxy Coated Aluminum Fuel Tank
  • 10 year hull warranty

A Modern Day Console

You spend a lot of time at the helm. That’s why we spent so much time focusing on the console. Besides the sheer size, you’ll notice almost immediately that ergonomics drove every aspect of the design process.

There’s lot of space to flush mount variety of electronics. A watertight compartment for cell phones and wallets is centrally located. The windshield is made of tempered glass. Accessory switches and the ignition are mounted on vertical surfaces to minimize water intrusion. And there’s a cup holder on either side of the console.

Up front, the console offers a built-in drink cooler and easy access to wiring and electronics installations. We think you’ll agree, this is what a console should be!

Build it Your Way

The 270z is offered with single or twin outboards, as well an optional hard top, power poles and other accessories to compliment your boating and fishing lifestyle. We invite you to take a closer look at the available options, features, specifications and color choices.
