Center Consoles - 390Z Model Info

Leader of the Pack

The 390z is the ultimate center console fishing machine. Triple or quad outboards ranging from 900 – 1,800 hp combined with SeaVee’s revolutionary, twin stepped hull means the 390z boats superior speed, handling and fuel efficiency. Thanks to abundant storage capacity for fuel, bait, ice and gear, the 390z makes multi-day offshore trips a reality.

Step up Performance

Every SeaVee Z features a twin stepped, cross-ventilated hull with patented SpeedRail® technology. Multiple lifting bodies with unique geometry ensure a fixed trim angle throughout a wide range of speeds. That’s a fancy way of saying you always have a clear view of the horizon, maximum fuel efficiency, more speed and safe predicable handling when making hard turns.

With its massive length, 390z takes full advantage of this hull design. Capable of planing at very slow speeds the 390z can comfortably cruise through the roughest seas and glide across tightly spaced waves at high speed. Turns are sharp, crisp and stable. And reverse chines redirect spray away and downwards for a dry ride. Experience the 390z for yourself. Inquire about a sea trial today.

Running Facts

22.5° Deadrise
11′ Beam
26″ Draft
Legendary Dry Ride
Plane at Low Speed

The Power of Choice

When you’re building a SeaVee, the brand of motors you choose to hang is up to you. The 390z is available with triple or quad outboards between 300 hp – 450 hp. With triples, expect a top speed somewhere between 54 – 60 mph depending on boat layout and load. When upgrading to quads, expect a top speed in the 80’s depending on engine configuration, boat layout and load.

Power Options

Triple 400 hp
Triple 450 hp
Quad 300 hp
Quad 400 hp
Quad 450 hp
Max Power 1,800 hp
Top speed and range may vary significantly depending on sea conditions and load

Specifications

LOA – 39’
Beam – 11’
Weight w/o Engines – 12,000 lbs.
Hull Draft – 26”
Hull Deadrise – 22.5°
Fuel Capacity – 550 gal.
Fresh Water – 56 gal.
Waste – 19 gal.
Max Engines – 4
Max HP – 1,800
Fwd Fishbox – 160 gal.
Fwd Fishbox / Well – 70 gal.
Fwd Wing Boxes – 2x 100 gal.
Aft in Deck Fishbox / Live Well – 140 gal.
Transom Live Well – 65 gal.
Aft Wing Boxes – 2x 40 gal.

Standard Features

65 gallon live well
Dual aft 40 gallon pull-out compartments
Hull-Side Door with folding swim ladder
140 gallon aft storage locker/optional live well
Fully insulated fishboxes (2)
Lockable rod storage
Walk-in console with side sliding door, fresh water sink and shower
Freshwater washdown system with coiled hose and molded hose tray
Saltwater washdown system with coiled hose and molded hose tray

Dedicated anchor and storage locker
Helm station keyed, electronically controlled battery switches
Dual forward storage areas below gunwales or option dual 52” retractable bench seats
Large dual self bailing deck scupper ports
1/4” Coated Aluminum Fuel Tanks
Dual automatic bilge pumps
10 year hull warranty

Fishing Machine

The 390z is the ultimate fishing machine. An abundance of in-deck storage lockers, fish boxes and optional bait wells abound. The 390z can carry up to 42 fishing rods neatly tucked away under the deck, on the sides of the console, in the t-top and on the back of the leaning post.

A 65 gallon bait well is integrated into the transom with an optional 140 gallon well available in the cockpit floor. A third 70 gal. well can be added in the front cockpit sole for maximum capacity. An optional fiberglass cooler slides out from below the tackle station leaning post on stainless tracks to create a rear-facing seat to make keeping an eye on the spread more comfortable.

Additional fishing features include a variety of towers and upper stations choices to help the captain spot fish at a distance. A Coffin box for the front cockpit as well as electric reel outlets and a variety of outrigger configurations complete the package.

Highlights

Towers

Towers allow the captain to spot fish at a distance. SeaVee offers a wide variety of choices.

Fish Boxes & Storage

Choose how to configure insulated fish boxes, in-deck storage compartments and in-floor bait wells.

Rod Storage

Carry up to 42 rods neatly tucked out away, yet ready for action.

Bait Wells

The 390z can accommodate up to 3 bait wells, two in the transom, and one in-deck well up front.

Captains Edition Leaning Post

This top of the line leaning post offers abundant tackle storage and a sliding fiberglass cooler.

Integrated Fold-Out Seating

Out of the way when fishing yet always with you when needed.

A Modern Day Console

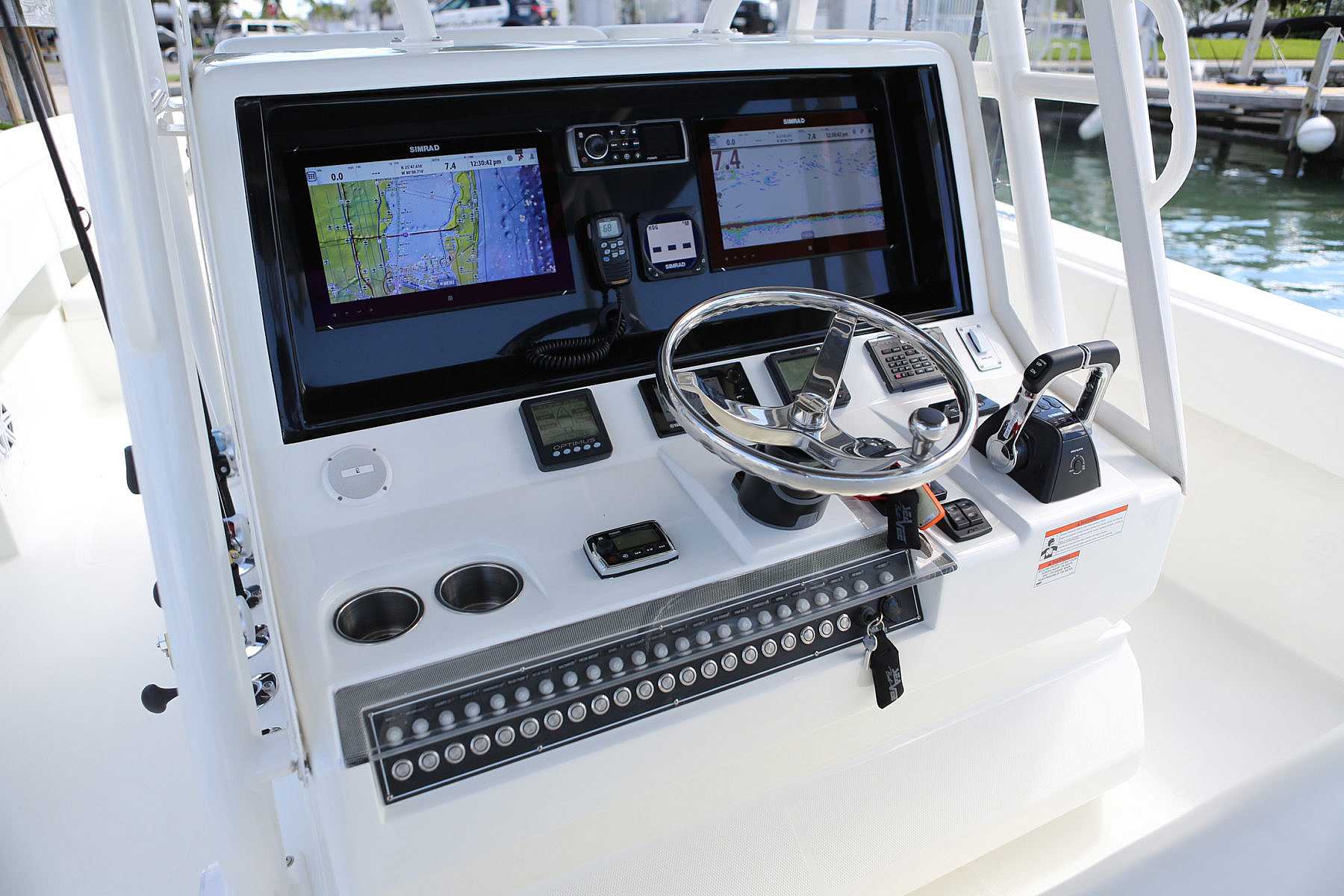

The 390z features a large console designed to maximize deck space, while providing plenty of room on the inside. The console’s ergonomic design accommodates two 16″ navigation units side by side with space between them for a VHF and a head unit, or choose 19″ displays for a glass bridge look. A splash cover protects vital electronics. And an array of switches that controls onboard accessories is within easy reach.

The console door is located on the front, allowing the sides of the console to be used for out-of-the-way rod storage. The interior houses battery switches, a breaker panel, a sink, access to electronics and batteries, and it can be outfitted with an optional marine head.

Build it Your Way

The 390z is designed for long range trips with a large crew and can be customized to fit your exact needs. Fishing enthusiasts can choose from a variety of towers, live wells and rod holder configurations. Families seeking extra comfort may find the integrated forward fold-down seats along with toilet and shower facilities appealing. If you are interested in a sun pad or molded-in seating configurations, take a look at the options available with the Luxury Edition (LE).

390z Options Luxury Edition (LE) Options SeaVee Z Brochure
